TCE 9,000 LBs 4 Post Car Lift Parking Lift, 2 Year Warranty, QJY4040-DS
TCE 9,000 LBs 4 Post Car Lift
Details
The TCE 9,000 lbs 4-Post Car Lift offers the perfect balance of versatility and heavy-duty stability for your garage. Whether you need to maximize your parking space with vehicle stacking or require a reliable platform for precision service work, this lift delivers effortless operation and robust support. Designed with safety in mind and ready for immediate deployment, it is an essential professional-grade upgrade for any enthusiast or shop looking to optimize their workspace.
Feature(s)
- CE Certified Lift Structure and Hydraulic System: Compliant with CE certification standards for lift structure and hydraulic system.
- Third-Party Tested: Independently tested for a dynamic load capacity of 115% and a static load capacity of 150%.
- Durable Hydraulic System: Designed for long-lasting performance and durability.
- Easy Operation and Maintenance: User-friendly and straightforward to operate and maintain.
- Double Seal Rings: Incorporates double seal rings to protect PU material.
- Carriage Material Q355 (ASTM A572): Utilizes stronger Q355 steel (ASTM A572) for the carriage, surpassing normal Q235 steel.
- User-Friendly Controls: Lifting operation using the "UP" button on the motor and manual lowering via a lever.
- Overload Prevention: Equipped with a relief valve in the power pump to prevent overloading.
- Cylinder Stroke Protection: Features an up-limit switch to safeguard cylinder working stroke within a safe range.
-

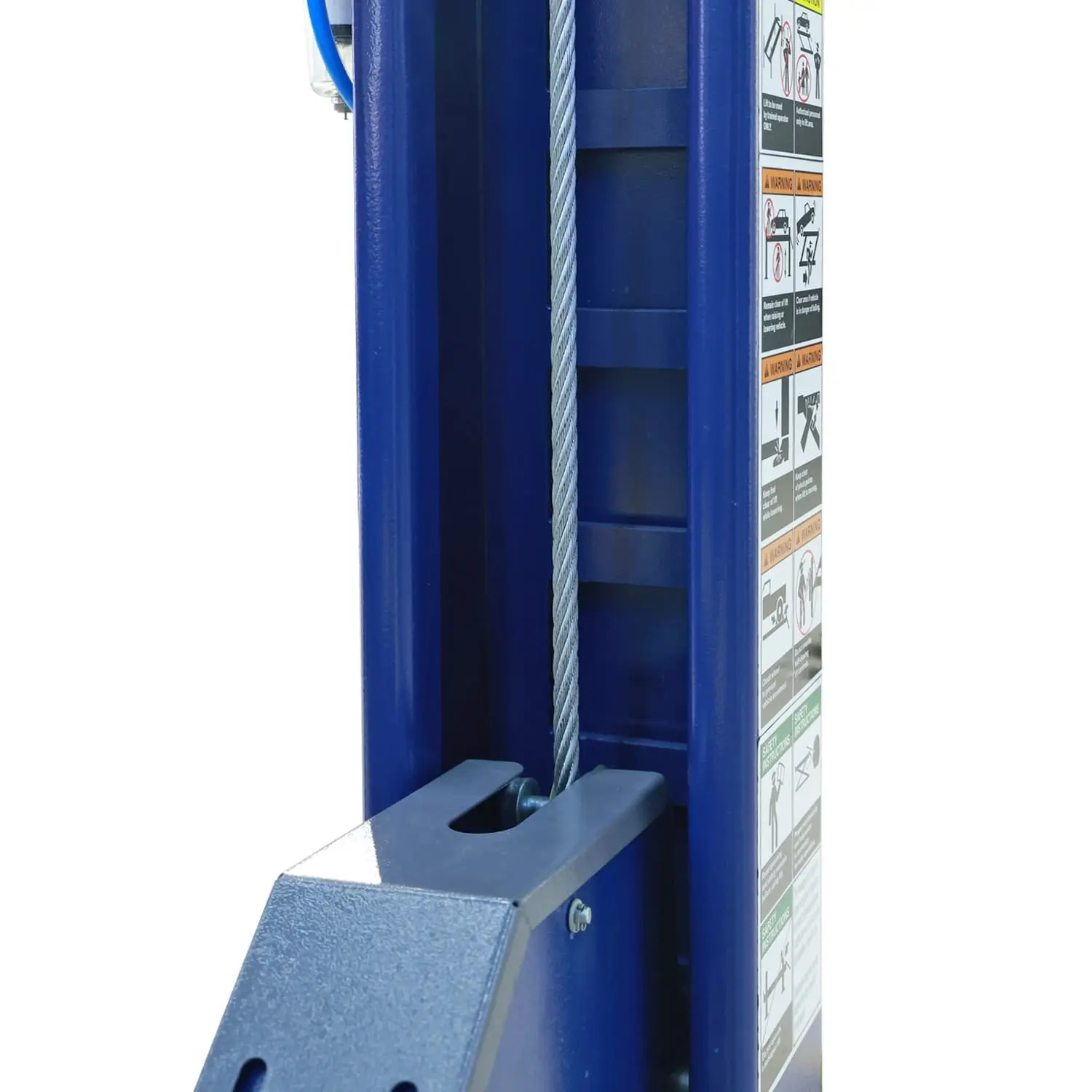

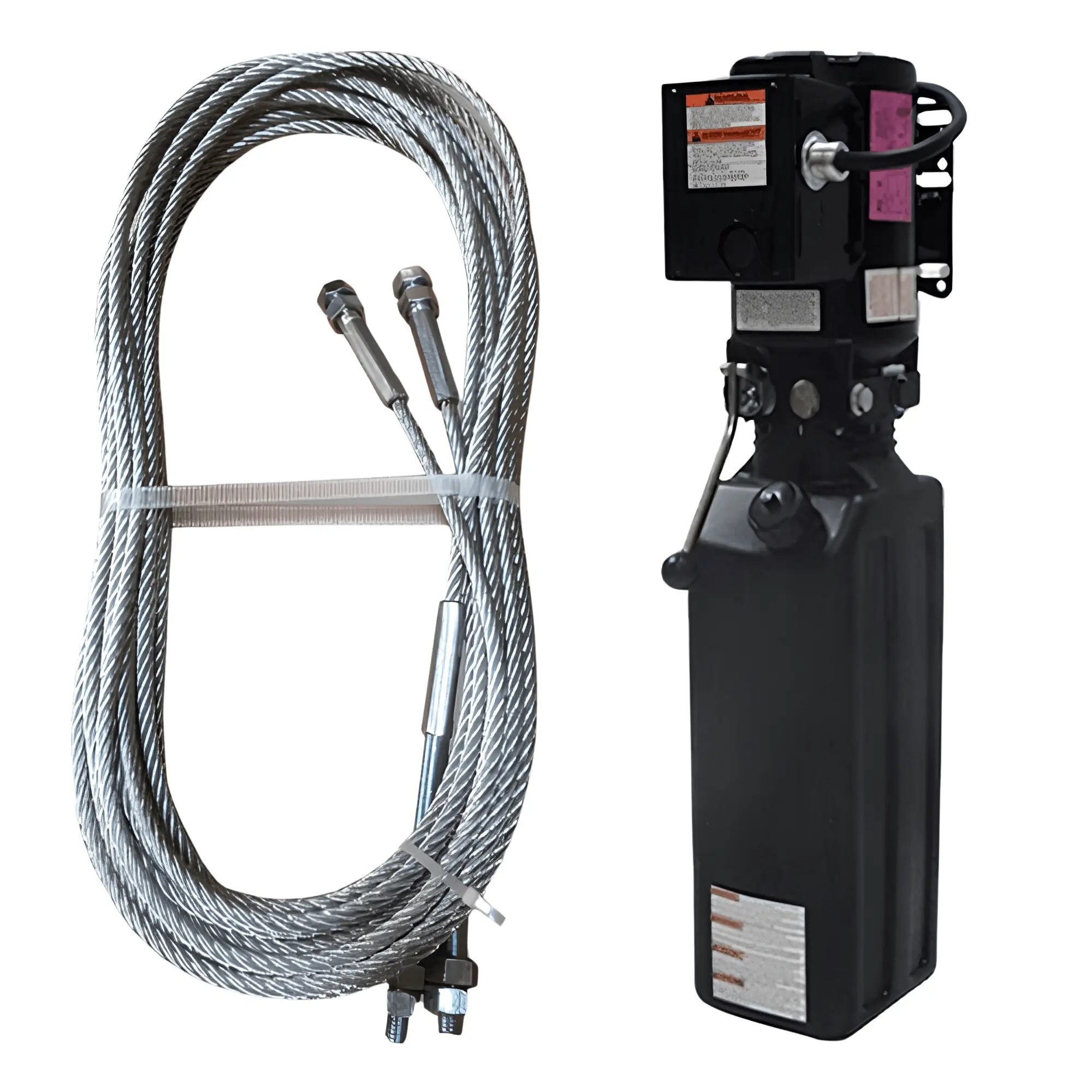

Heavy-Duty Cable and Pulley: Utilizes a robust 3/8" diameter cable and 5" pulley to reduce stress during synchronization and extend cable life.
Attributes and Specification
| Key Specs | QJY4040-DS |
| Lift Capacity | 9,000-lbs |
| Overall length | 200.48-in |
| Overall Length Plate to Plate | 175.03-in |
| Overall width | 131.7-in |
| Overall height | 92-in |
| Overall height of posts | 87.8-in |
| Max. lifting height to top of run-ways | 75.5-in |
| Max. lifting height to top of run-ways | 75.5-in |
| Max. clearance under runways on top of lock | 69-in |
| Minimum ground clearance | 5.5-in |

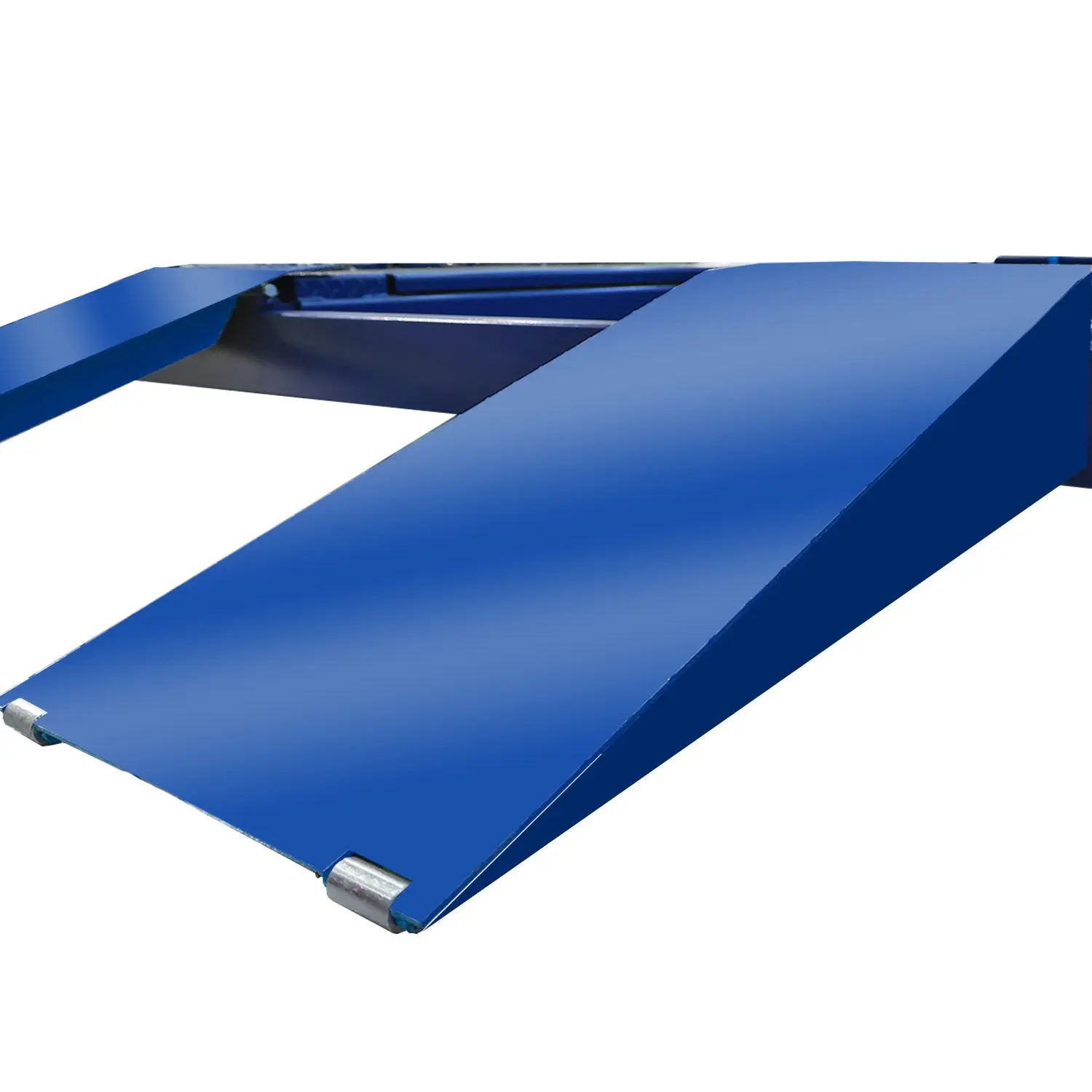

| Approach ramp length | 34.5-in |
| Runway dimensions length | 166-in |
| Runway dimensions width | 18.92-in |
| Runway dimensions height | 4.68-in |
| Outside width with both runways (Adjustable) | 76 / 81.9 |
| Clearance between runways (Adjustable) | 38.2 / 44.1 |
| Overall width outside of posts | 117-in |
| Max. clearance between posts | 106.9-in |
| Ramp gauge of steel | 1/4" |
| Post dimensions length | 6 in |
| Post dimensions width | 5 in |
| Locking positions (qty.) | 13 in |
| Time of full rise (seconds) | 60 in |
| Motor phase(s) | 1 Phase |
| Voltage | 110V(26AMP) |
| Htz | 60 Hz |
| Manufacturer warranty | 2 Year Limited |
| Shipping Dimensions | 171 in. x 21 in. x 28 in. |
| Product weight | 1764 LB |
| Shipping Weight | 1808 LB |
We take pride in our quality materials and craftsmanship. Our commitment to excellence is backed by an industry-leading 2-year warranty for all parts, valued at $499. We welcome your feedback to continually improve our products and services.TCE 9,000 LBs 4 Post Car Lift Parking Lift, 2 Year Warranty, QJY4040-DS
Warehouse Pickup Offer(SAVE MORE WITH DISCOUNT)：
Get $600 OFF! Message us by tcecustomerservice@torin-usa.com right after placing your order.
1. Available pickup locations:
NJ: North Brunswick, Linden
TX: Brookshire, Baytown
GA: Forest Park
CA: Colton, Azusa
IL: Romeoville
2. Contact us by tcecustomerservice@torin-usa.com to reserve stock and book your pickup time
3. Bring your BOL and order number to collect your items easily
Operation Manual:
OPERATION MANUAL CLICK HERE
